Summary

This experiment distills the published Microduck Flamingo balance actor into a
neutral-head policy while preserving its mature leg controller.

  • Keeps the teacher observation normalizer and hidden layers.
  • Fits only the final linear layer against fixed-head teacher rollouts using
    ridge regression.
  • Constrains all four head action outputs to the neutral HOME target.
  • Includes the ONNX policy, source dataset, distillation/evaluation scripts,
    raw telemetry, checksums, and media.

Demo

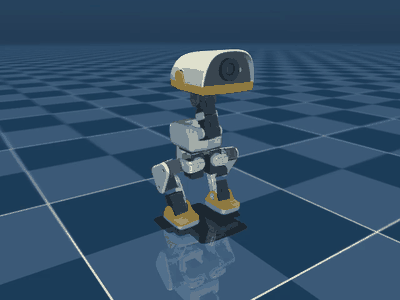

Animated left-foot then right-foot neutral-head Flamingo rollout

Download the full-quality 30-second MP4

Independent simulation result

Measurement Result Acceptance
Left-foot single-support fraction 100% >= 95%
Right-foot single-support fraction 99% >= 95%
Raised right-foot median height 9.67 cm >= 5 cm
Raised left-foot median height 7.64 cm >= 5 cm
Final two-foot contact fraction 100% >= 95%
Non-foot ground-contact samples 0 0
Maximum trunk tilt 27.93 deg < 60 deg

The command timeline holds the left-foot and right-foot poses for 10 seconds
each, with two seconds excluded from each scored window as transition time.

Validation

  • Fresh evaluation reproduced the committed metrics.
  • The committed dataset reproduces the ONNX byte-for-byte with ridge 25.
  • ONNX SHA-256:
    ca1d39539074655ad344bcf95cffb352215ba1d25b444c315cebf8a792a63e5f
  • Machine-readable results:
    results/summary.json

Provenance and limitation

The teacher is Pollen Robotics / Remi Fabre's published
microduck-flamingo-cycle
policy and is attributed under Apache-2.0.

"Neutral head" means neutral actuator targets, not mechanically locked
joints. Small passive head deflection remains under load; the README reports
the measured joint ranges. This is a simulation result and does not claim
hardware validation.

RemiFabre and others added 18 commits August 29, 2026 00:43
…h sides, FlamingoCommand + side-aware rewards + tests
…mmand, clearance target, logged diagnostic, test range)
…hird twist slot, slewed pose blend, spawn event, tests
…ward, tighter pose std, 2200-it pacing (run 1 parked the développé foot on the floor)
…policies.md, scripts/publish_policy.py, card template); first example RemiFabre/microduck-flamingo-cycle
…recipe without daemon changes (walk role, stand=none, cmd_alpha, limp_fall tilt gate)
