System Architecture

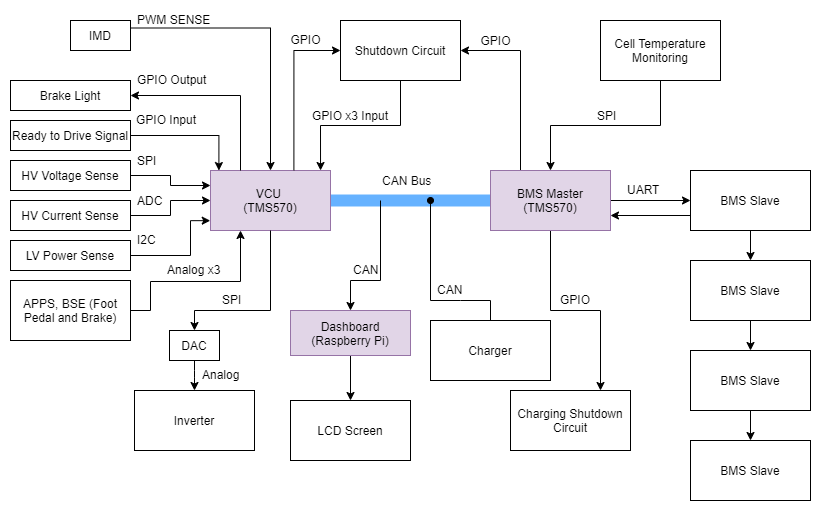

Here is a high-level block diagram of our vehicle's embedded system.

The purple boxes indicate microcontrollers, other white boxes are sensors or other peripherals in the vehicle.
